- Place of Origin: LAIZHOU
- Brand Name: Lu state chemical machinery
- Model Number: 85 130

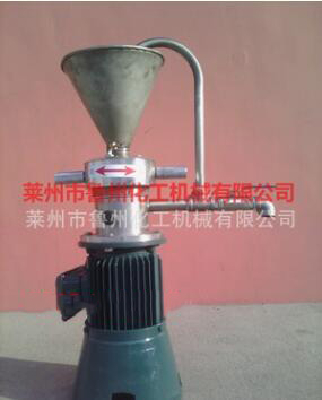

1, colloid mill level mounted on a flat concrete foundation, and anchor screw fixation (according to the work is not fixed).
2, check the fastening screws are tightened (rotor center screw for M12 left screw).
3, before using, use special wrench to rotate the rotor, check and if the stator contact, there is no card dead phenomenon, such as the situation does not allow the boot.
4, check and connect the power cord (three-phase alternating current, voltage is 380 volts, the body protection grounding) and pay attention to the rotor rotation direction should be consistent with the direction of the base on the base (clockwise rotation).
5, connect the cooling water, and pay attention to tap out of the water mark.
6, start the motor, the first point of the switch, check whether there is noise, vibration. If the situation is not normal should be immediately shut down, troubleshooting and then try to run.
7 and after cleaning a stator, a rotor residual material should be in running condition, the first kcal disc to the counter clockwise rotation is not less than 90 DEG after cleaning.
8, fixed, rotor clearance adjustment method (adjustment should be carried out in the running state):
A, two handle loosening B, move the handle drives the kcal disc rotation, the gap adjustment, positioning disc clockwise rotation gap narrowed, material particle size and thinner. Increase the rotation of the counter clockwise, coarse material size.
C, stator, rotor clearance adjustment, should be tightened at the same time two handles (clockwise).
D, according to the size of the processing materials and batch requirements, select the best fixed, after the gap between the rotor can be adjusted to limit the screw to achieve the purpose of limiting.
9, butter cup should be regularly filling.
10, the requirements of processing materials:
A, can not be processed dry solid material, can only be used for wet processing.
B, grinding materials should be removed before debris, particle size less than 1 mm, the hardness of the material shall not be higher than HV309, iron and gravel particles and other hard objects are forbidden to enter the grinding head, the anti damage to the machine.
