- Place of Origin: LAIZHOU
- Brand Name: Lu state chemical machinery
- Model Number: 5-2000L
The structure of a variety of options such as stirring teeth type, emulsion type, frame type stirring, mixing, no dead.
The vacuum degassing, no bacterial contamination.
The process according to the different requirements of different users can be distribution heating, steam heating, water cooling device.
Part of the material - vacuum contact material dispersion machine and choice of two kinds of carbon steel or stainless steel.
The vacuum dispersion machine specifications can be processed in accordance with customer requirements or design
The vacuum dispersing machine motor type: ordinary type explosion-proof type
The size of the power unit of vacuum pump vacuum system, according to the volume of barrel size selected by the cover at the opening of the vacuum.
The stirring speed can be selected according to the requirement of customers 0-1250r/min or 0-1400r/min

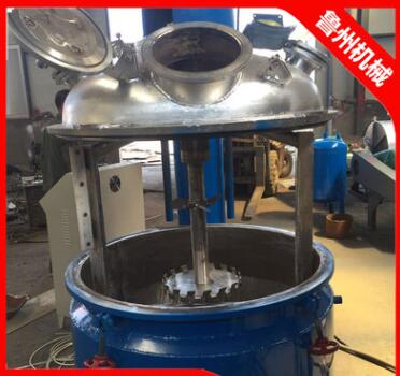

The middle stainless steel mixing shaft is a butterfly airfoil with a scraping plate type mixing blade, the motor is configured with the 1:30 speed reducer and the frequency converter to control the speed, and the operation speed is 0 - 200rpm.
Vacuum dispersion machine technical parameters:
1, motor power: 1.5kw, 2.2kW, 3KW, 4kw
Lift stroke: 900mm
Dispersion disk diameter: O 150mm o 200mm or
2, motor power: 5.5kW, 7.5kW, 11kw
Lift stroke: 1200mm
Dispersion disk diameter: O 200mm o 250mm or
3, motor power: 15kw ~ 30KW
Lift stroke: 1200mm
Dispersion disk diameter: O 300mm o 350mm or
4, vacuum dispersing machine motor type: ordinary type / explosion-proof type
5, vacuum dispersing machine speed regulation mode: frequency conversion speed regulation
6, vacuum dispersion machine standard configuration: electric control cabinet, hydraulic system, vacuum system, vacuum cylinder
- Place of Origin: LAIZHOU
- Brand Name: Lu state chemical machinery
- Model Number: 5-2000L
Vacuum dispersion machine technical parameters:
1, motor power: 1.5kw, 2.2kW, 3KW, 4kw
Lift stroke: 900mm
Dispersion disk diameter: O 150mm o 200mm or
2, motor power: 5.5kW, 7.5kW, 11kw
Lift stroke: 1200mm
Dispersion disk diameter: O 200mm o 250mm or
3, motor power: 15kw ~ 30KW
Lift stroke: 1200mm
Dispersion disk diameter: O 300mm o 350mm or
4, vacuum dispersing machine motor type: ordinary type / explosion-proof type
5, vacuum dispersing machine speed regulation mode: frequency conversion speed regulation
6, vacuum dispersion machine standard configuration: electric control cabinet, hydraulic system, vacuum system, vacuum cylinder
